Mode of display
- Black-and-white image:
B, 2B, 4B, right/left B|M, B|D, right/left PW(D), top/down PW(D), M, B mode local amplification, linear probe trapezoidal imaging, 3D reconstruction/real-time 3D imaging

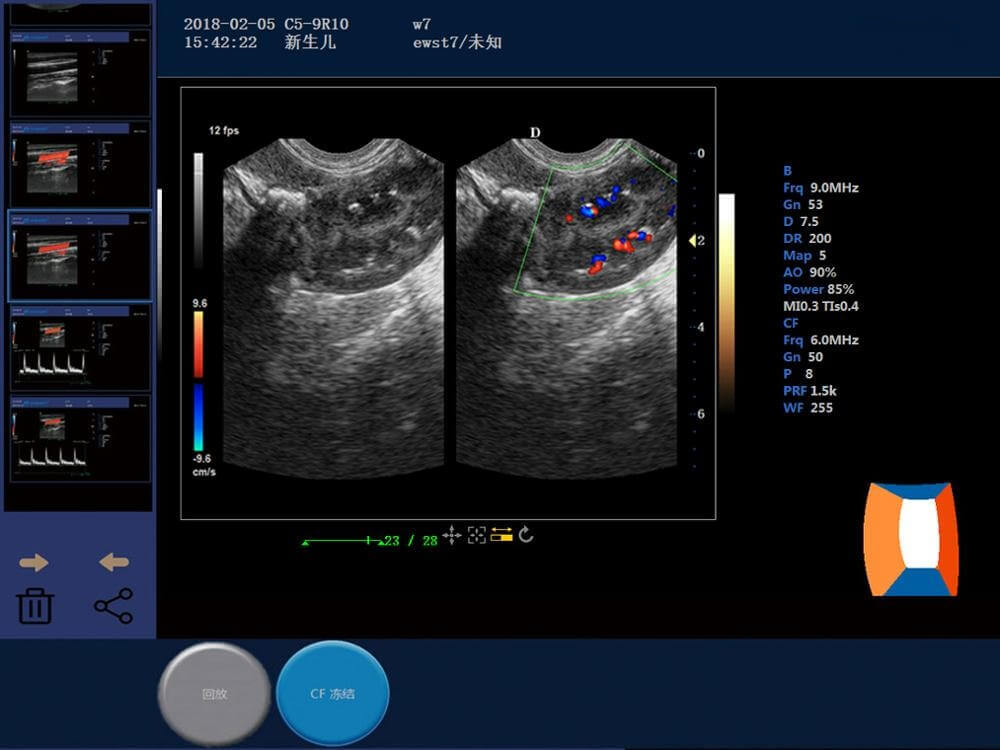

- Blood flow images:
spectrum: B/BC, BC/B, B/D, B/C/D CFM: B|C|D, B|C|M, B|C double real-time, PW(D)(D), CFM, CPA, CW

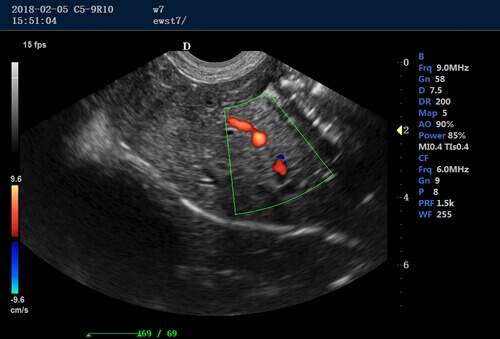

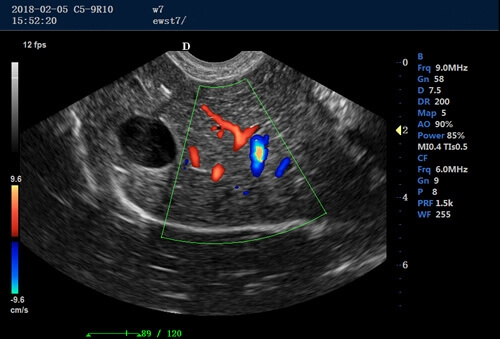

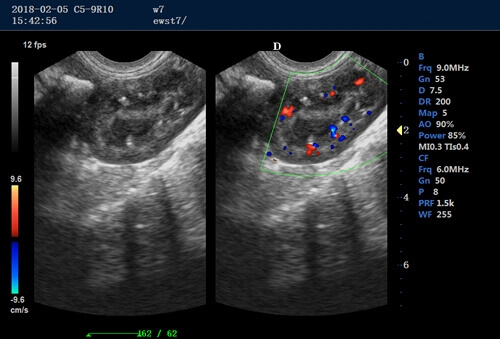

- Color Doppler:
Mode of display: energy, velocity, variance (in support of velocity variance), frequency, gain
Display control: the size and position of the sampling box are both adjustable, the emitting angle of the linear probe is adjustable.
- Spectral Doppler:
Sampling volume and position are adjustable
PW(D) tracing supports maximum and average velocity. The threshold of the maximum velocity is adjustable.
Scanning scope: above base-line, below base-line and entire scanning.
PW(D) sound can be turned on or off, and can be regulated in volume.
Velocity measuring: in support of maximum and minimum velocity
Parameters for control of blood flow color images: Doppler frequency, position and size of sampling box, base line, color gain, deflection angle, wall filter, accumulative number of times, etc.
Color depth of display: Continuously adjustable
Focusing: Electronic focusing + sound lens focusing
Emission involves single focus, double focuses, triple focuses, and quadruple focuses Continuously dynamic focusing in receiving
Formation of digital beam: Continuously dynamic focusing
- Dynamic aperture diameter
- Weighted sum of reception delay
- In support of semi-moment scanning, and ±10° linear reception deflection angle
- Multi-beam processing
Signal processing/Doppler sound
Dynamic wave filtering
Quadrature demodulation
Total gain control
Composite gain technology: 8-section TGC and D-AGC.
Low-pass filter
Secondary sampling
Acoustic output adjustment
Adjustable Doppler stereophonic acoustic output
Image processing
Dynamic scope variation and logarithmic compaction
Time filtering
Space filtering
Frame average
Fringe enhancement
Gray scale variation
B|M- or M-mode scanning speed
Linear density control
Scanning angle/width control
Image optimization
Upward and downward Image flipping
Multi-angle image rotation
Options for color gray-scale bar inversion
Combined processing of tissue and flow images
Resolution of black-and-white images: 1024×768×8bits (256 gray-scale)
Resolution of color images: 8bit × 8bit × 8bit color coding
Selection of specific images
Optimized items are available to choose from
Basic measuring and calculating functions
2D normal measurement: distances, angle, perimeter, area (ellipse and locus methods), volume, volume – 3-line method (length, width, height), histogram, cross-section chart
Basic M-Mode measurement: time, distance, heart rate, valve rate
Obstetric measurement
With 4 varieties of obstetric databases for reckoning gestation age
3 non-editable versions: Asian, European and American, plus 1 editable version: user-customized.
The gestation age can be reckoned by the information in each version on gestational sac diameter, crown-rump length, biparietal diameter, head circumference, abdominal circumference, femur length, humerus length, abdominal transversal diameter, length of vertebrae, occipital-frontal diameter, cerebellum diameter, fibula length, radius length, Cisterna Magna, inner orbital diameter, output orbital diameter, amniotic fluid index, fetal heart rate, nuchal transparency, distance and area, etc.
Obstetric report
Measurement and calculation of amniotic fluid index (AFI)
Ratio calculation (BPD/OFD, FL/AC, FL/BPD and HC/AC)
Fetus weight estimation
Reckoning the gestation age and EDD by LMP and BBT
Fetal biophysical score
Fetal growth curve
Andrology measurement and calculation
Measurement and calculation of prostate and testis
Calculation of predicted prostatic specific antigen (PPSA) and Prostatic Specific Antigen density (PSAD).
Gynecology measurement
Measurement and calculation of the uterus, left ovarium, right ovarium, left folliculitis, right folliculitis, etc.
Urology measurement and calculation
Detection and calculation of the left kidney, right kidney, bladder, residual urinal vol, etc.
Vessel measurement and calculation
Measurement and calculation of area stenosis rate and vascular stenosis rate.
Multi-fetus detection and measurement
Detection of multiple fetuses
Small parts detection and calculation
Detection and calculation of thyroid, galactophore, masses, etc.
Orthopedic surgery measurement
Detection of the left and right hip joint
Cardiac detection and calculation functions
Cardiology measurement software package—contains features of analyzing and measuring aorta, mitral valve, (left/right) ventricles, etc.
Area stenosis percentage (area stenosis%), tube diameter stenosis percentage (Diam stenosis%)
Body surface area (BSA)
Body mark
In terms of bodily function, a body mark database is divided into several parts: abdomen, andrology, cardiology, gynecology, musculoskeletal, obstetrics, pediatric, small parts, urology, etc.
Screen-displayed information
Probe conditions, mode of display, depth, focus, dynamic range, body marks, probe position marker, acoustic output, patient conditions, name of medical agency, measured value, time and date, scale, scanning direction, gray-scale curve, current working frequency of the probe, frame frequency, B-Mode total gains, C-Mode total gains, Mode-D total gains, menu, annotations, gray-scale belt, puncture guide line, TI (thermal index), MI (mechanical index)
Storage
Probe parameter storage
Image storage
Cine loop storage
Measurement results storage
Report storage
Cine loop
Automatic cine-loop
Manual cine-loop
Cine-loop speed setting
Cine-loop search
Frame-by-frame forward/backward cine-loop
Digital ultrasonic working station (optional)
General report
Obstetric report
Andrology report
Gynecology report
Urology report
Blood vessel report
Small parts report
Cardiology report (ventricular report, mitral value report, aortic report, left ventricle report)
Search
Gray-scale
256 gray-scale
Language interface
Chinese and English available

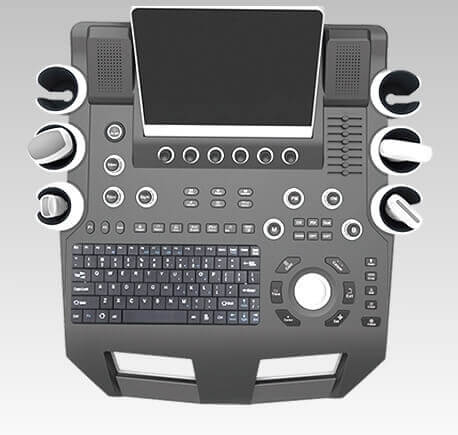

Function of the trackball
Performing various operations based on the working state and menu
Controlling multiple electronic scale, locating the cursor, completing measurement
Input/output port
VGA output port
DVI output port
Network port
USB port
Video port
