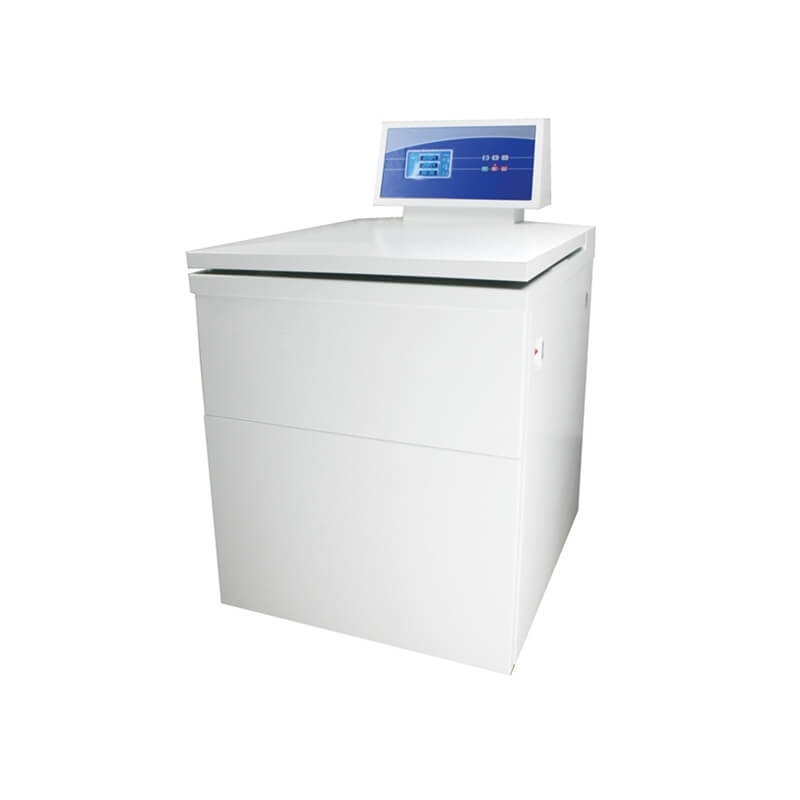

Floor Standing Refrigerated Large Capacity Centrifuge PM5WR

16214999141 - Floor Standing Refrigerated Large Capacity Centrifuge PM5WR

Microprocessor control with AC Brushless Motor
CFC free cooling system with pre-cooling function.
LCD Displays the parameters of speed, timer, RCF, Temperature, rotors information, Program (Memory) information, Acceleration & Deceleration information, and Error code information.
Steel centrifuge body and 304# stainless steel chamber are autoclavable and resistant detergents and disinfection liquids.
Gas hinge for lid drop protection.
SafetyElectrical lid interlock, the door could not open when the rotor is running and the machine won’t run when the lid opens and an error code appears.

Product Details Rotor Details Contact Us

Features:

Emergency lid lock release when power failure
Window on lid for speed calibration and noise measurement.
Continuous operation, working continuously according to the set time.
10 kinds of Program(Memory) and 10 kinds of Acceleration & Deceleration for choice. For more programs please specially mentioned when placing the order.
Automatic troubleshooting with an indication of error code and alarm on the screen.
Wide choicesof rotors are autoclavable.
With CE and ISO9001:2008, ISO13485 certificate

Floor Standing Refrigerated Large Capacity Centrifuge PM5WR Specification:

Speed range(rpm)	0-5000rpm adjustable
Max Capacity(ml)	6*500ml
RCF range (xg)	0-4650xg adjustable
Noise(dBA)	≦58dB(A)
Time range	1-99minutes adjustable
Temperature range(℃)	-20℃~+40℃ adjustable
Speed accuracy	±20r/min
Temperature accuracy	±1℃
Dimension(mm)	6307301060mm
Net weight (without rotor)	180KGS
Power supply	AC220-240V,50/60HZ,15A,2.2KW

Rotor List Details
Rotor Number	Image	Max Speed	Max Volume	Max RCF	Adapter
NO.1 Swing rotor		4000rpm	6x500ml	3710xg	6x26x0.2ml/0.5ml 6x17x1.5/2.2m 6x10x5ml 6x9x10ml/15ml 6x7x20ml,6x5x30ml,6x3x50ml 6x100ml/250ml/300ml 6x9x2ml(75mm,vacuum blood collection tube) 6x9x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.2 Swing rotor		4000rpm	4x1000ml	39xg	4x40x0.2ml/0.5ml 4x17x1.5/2.2m 4x10x5ml 4x9x10ml/15ml 4x7x20ml,4x5x30ml,4x3x50ml 4x100x250ml/300ml 4x9x2ml(75mm,vacuum blood collection tube) 4x9x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.3 Swing rotor		4000rpm	4x500ml	3520xg	4x26x0.2ml/0.5ml 4x17x1.5/2.2m 4x10x5ml 4x9x10ml/15ml 4x7x20ml,4x5x30ml,4x3x50ml 4x100ml/250ml/300ml 4x9x2ml(75mm,vacuum blood collection tube) 4x9x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.4 Swing rotor		4000rpm	4x500ml (Conical)	3765xg	4x26x0.2ml/0.5ml 4x17x1.5/2.2m 4x10x5ml 4x4x10ml/15ml 4x20ml/30ml/50ml/100ml 4x9x2ml(75mm,vacuum blood collection tube) 4x9x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.5 Swing rotor		14000rpm	4x250ml	2990xg	4x13x0.2ml/0.5ml 4x10x1.5/2.2m 4x6x5ml 4x5x/10ml/15ml 4x4x20ml,4x3x30m 4x50ml/100ml 4x9x2ml(75mm,vacuum blood collection tube) 4x9x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.6 Swing rotor		4000rpm	148x2ml (vacuum blood collection tube	2975xg	148×0.2ml 148×0.5ml 148×1.5/2.2ml
NO.7 Swing rotor		4000rpm	148x5ml (vacuum blood collection tube	3405xg	148×0.2ml 148×0.5ml 148×1.5/2.2ml
NO.8 Swing rotor		4000rpm	4x100ml	4650xg	4x6x0.2ml/0.5ml 4x4x1.5/2.2m 4x2x5ml 4x10ml/15ml/20ml/30ml/50 4x3x2ml(75mm,vacuum blood collection tube) 4x3x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.9 Swing rotor		4000rpm	24x50ml	3405xg	24x3x0.2ml/0.5ml 24x2x1.5/2.2m 24x5ml/10ml/15ml/20ml/30ml 24x2ml(75mm,vacuum blood collection tube) 24x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.10 Swing rotor		4000rpm	8x50ml	3040xg	8x3x0.2ml/0.5ml 8x2x1.5/2.2ml 8x5ml/10ml/15ml/20ml/30ml 8x2ml(75mm,vacuum blood collection tube) 8x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.15 Swing rotor		4000rpm	32x15m	3000xg	32×0.2ml/0.5ml 32×1.5/2.2ml 32x5ml 32x2ml(75mm,vacuum blood collection tube) 32x5ml(100mm,vacuum blood collection tube)
NO.12 Swing rotor		4000rpm	2x2x96Micro plate	2990xg	2x49x0.2ml/0.5ml 2x30x1.5/2.2ml
NO.13 Swing rotor		4000rpm	4x800ml	3405xg	4x40x0.2ml/0.5ml 4x26x1.5/2.2m 4x16x5ml 4x14x/10ml/15ml 4x9x20ml,4x8x30m 4x5x50ml 6x3x100ml 4x250ml/300ml/500ml 4x24x2ml(75mm,vacuum blood collection tube) 4x24x5ml(100mm,vacuum blood collection tube) All can be custom made
