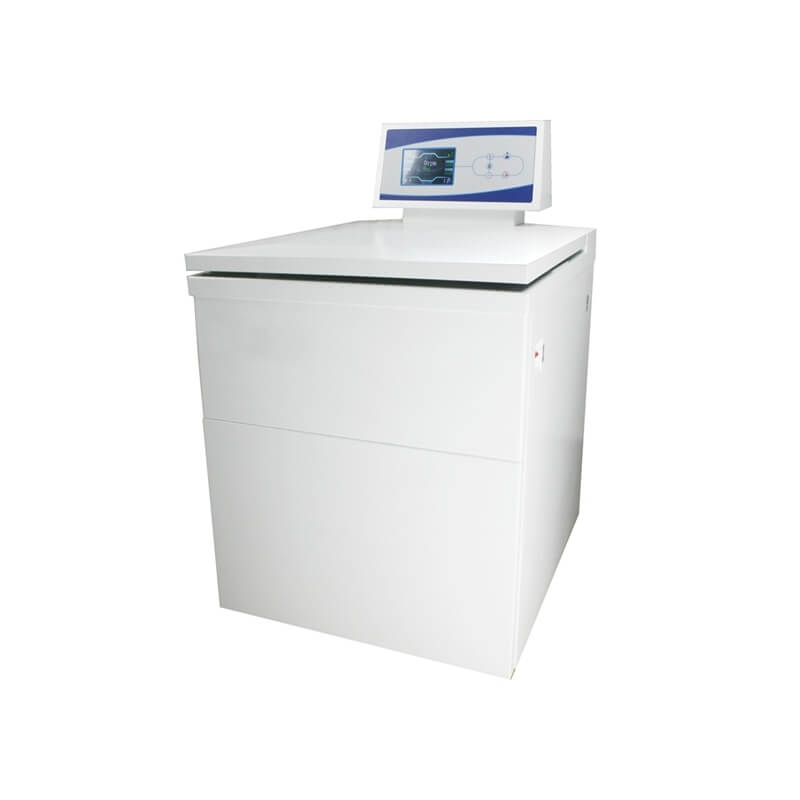

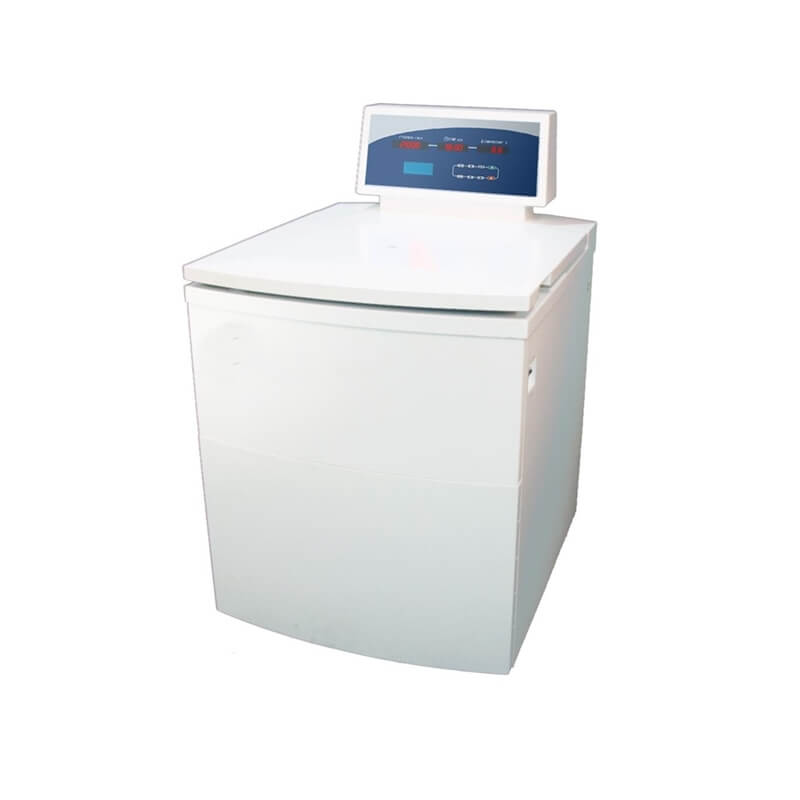

High Speed Large Capacity Refrigerated Floor Centrifuge PM21WR

16214999141 - High Speed Large Capacity Refrigerated Floor Centrifuge PM21WR

Microprocessor control with AC Brushless Motor
CFC free cooling system with pre-cooling function.
LCD Displays the parameters of speed, timer, RCF, Temperature, rotors information, Program (Memory) information, Acceleration & Deceleration information, and Error code information.
Steel centrifuge body and 304# stainless steel chamber are autoclavable and resistant detergents and disinfection liquids.
Gas hinge for lid drop protection.
SafetyElectrical lid interlock, the door could not open when the rotor is running and the machine won’t run when the lid opens and an error code appears.

Product Details Rotor Details Contact Us

Features:

Emergency lid lock release when power failure
Window on lid for speed calibration and noise measurement.
Continuous operation, working continuously according to the set time.
10 kinds of Program(Memory) and 10 kinds of Acceleration & Deceleration for choice. For more programs please specially mentioned when placing the order.
Automatic troubleshooting with an indication of error code and alarm on the screen.
Wide choicesof rotors are autoclavable.
With CE and ISO9001:2008, ISO13485 certificate

High Speed Large Capacity Refrigerated Floor Centrifuge PM21WR Specification:

Speed range(rpm)	0-21000rpm adjustable
Max Capacity(ml)	6*500ml
RCF range (xg)	0-47400xg adjustable
Noise(dBA)	≦58dB(A)
Time range	1-99minutes adjustable
Temperature range(℃)	-20℃~+40℃ adjustable
Speed accuracy	±20r/min
Temperature accuracy	±1℃
Dimension(mm)	8407301220mm
Net weight (without rotor)	280KGS
Power supply	AC220-240V,50/60HZ,25A,4.2KW

Rotor List Details
Rotor Number	Image	Max Speed	Max Volume	Max RCF	Adapter
NO.1 Fixed rotor		21000rpm	16x10ml	47400xg	6×0.2ml/0.5ml 6×1.5/2.2ml 6x5ml All can be custom made
NO.2 Fixed rotor		20000rpm	6x50ml	43000xg	6×0.2ml/0.5ml 6×1.5/2.2m 6x5ml/10ml/15ml/20ml/30m All can be custom made
NO.3 Fixed rotor		18000rpm	8x50ml	39190xg	8×0.2ml/0.5ml 8×1.5/2.2m 8x5ml/10ml/15ml/20ml/30m All can be custom made
NO.4 Fixed rotor		12000rpm	8x100ml	19830xg	8×0.2ml/0.5ml 8×1.5/2.2m 8x5ml/10ml/15ml/20ml/30m All can be custom made
NO.5 Fixed rotor		14000rpm	4x250ml	28150xg	4x13x0.2ml/0.5ml 4x10x1.5/2.2m 4x5x5ml/10ml/15ml 4x20ml/30m/50ml/100ml All can be custom made
NO.6 Fixed rotor		12000rpm	6x250ml	22800xg	6x13x0.2ml/0.5ml 6x10x1.5/2.2m 6x5x5ml/10ml/15ml 6x20ml/30m/50ml/100ml All can be custom made
NO.7 Fixed rotor		12000rpm	6x300ml	22600xg	6x13x0.2ml/0.5ml 6x10x1.5/2.2m 6x5x5ml/10ml/15ml 6x20ml/30m/50ml/100ml All can be custom made
NO.8 Fixed rotor		10000rpm	6x500ml	18705xg	6x22x0.2ml/0.5ml 6x13x1.5/2.2m 6x10x5ml 6x8x10ml/15ml 6x20ml/30m/50ml/100ml/250ml All can be custom made
NO.9 Swing rotor		4000rpm	4x500ml	3520xg	4x26x0.2ml/0.5ml 4x17x1.5/2.2m 4x10x5ml 4x9x10ml/15ml 4x7x20ml,4x5x30ml,4x3x50ml 4x100ml/250ml/300ml 4x9x2ml(75mm,vacuum blood collection tube) 4x9x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.10 Swing rotor		4000rpm	4x800ml	3405xg	4x40x0.2ml/0.5ml 4x26x1.5/2.2m 4x16x5ml 4x14x10ml/15ml 4x9x20ml/30ml,4x5x50ml 4x3x100ml 4x250ml/300ml/500ml 4x24x2ml(75mm,vacuum blood collection tube) 4x24x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.15 Swing rotor		4000r/min	2x2x96 Micro plate	2990xg	2x49x0.2ml 2x49x0.5ml 2x30x1.5/2.2ml
NO.12 Swing rotor		5000rpm	4x50ml	4605xg	4x3x0.2ml/0.5ml 4x2x1.5/2.2ml 4x5ml,4x10ml,4x15ml 4x20ml,4x30ml 4x2ml(75mm,vacuum blood collection tube) 4x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.13 Swing rotor		12000rpm	4x4x5ml	11900xg	4x4x0.2ml :4x4x1.5/2.2ml
NO.14 Continuous rotor		14000rpm	Deposit 1000ml	21500xg
NO.15 Continuous rotor		16000rpm	Deposit 1000ml	28200xg
NO.16 Continuous rotor		8000rpm	Deposit 3000ml	9500xg
NO.17 Continuous rotor		10000rpm	Deposit 3000ml	14800xg
