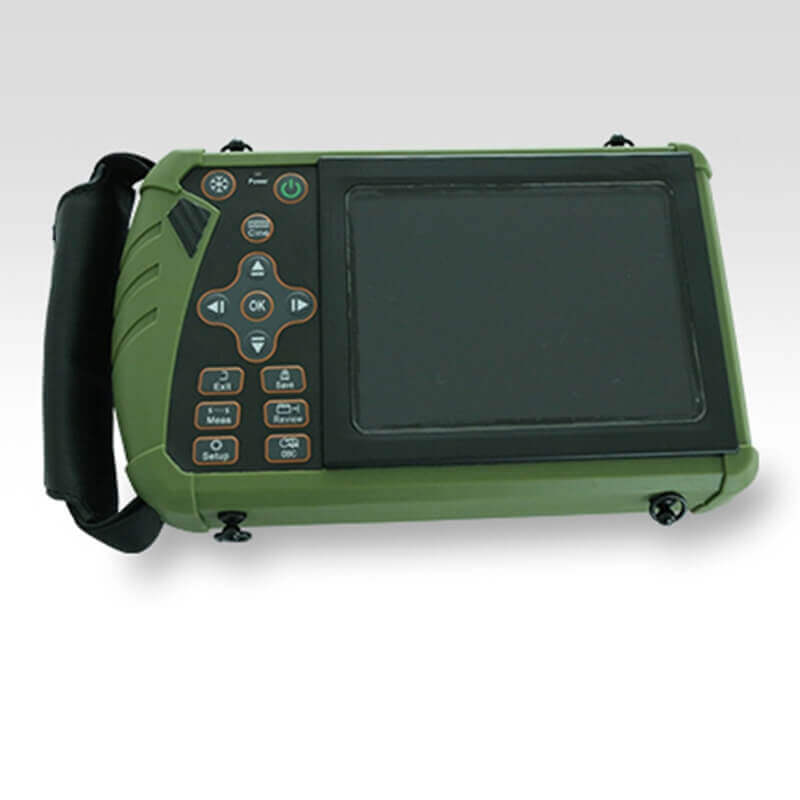

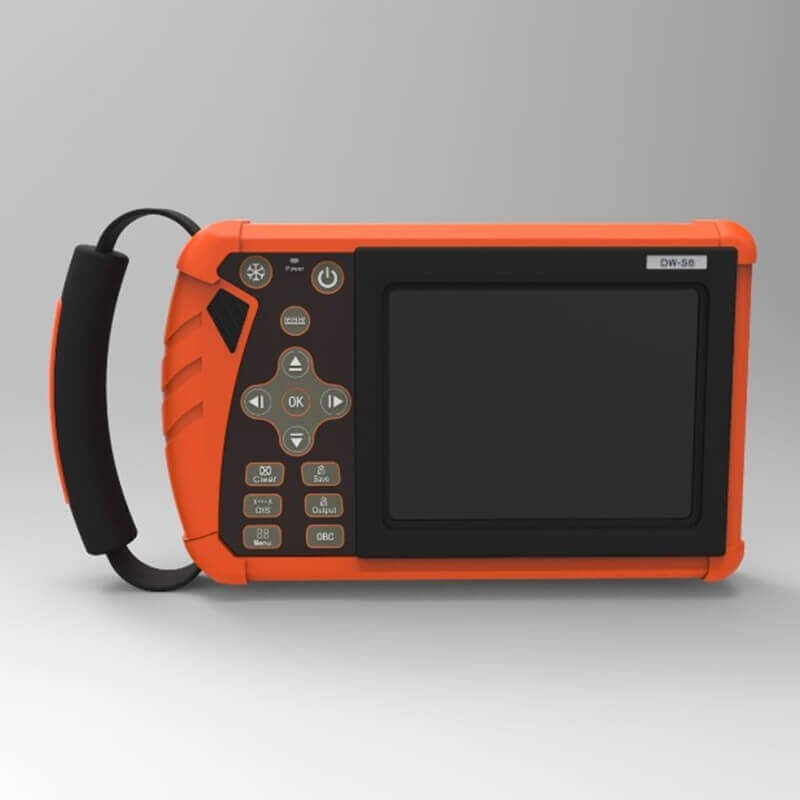

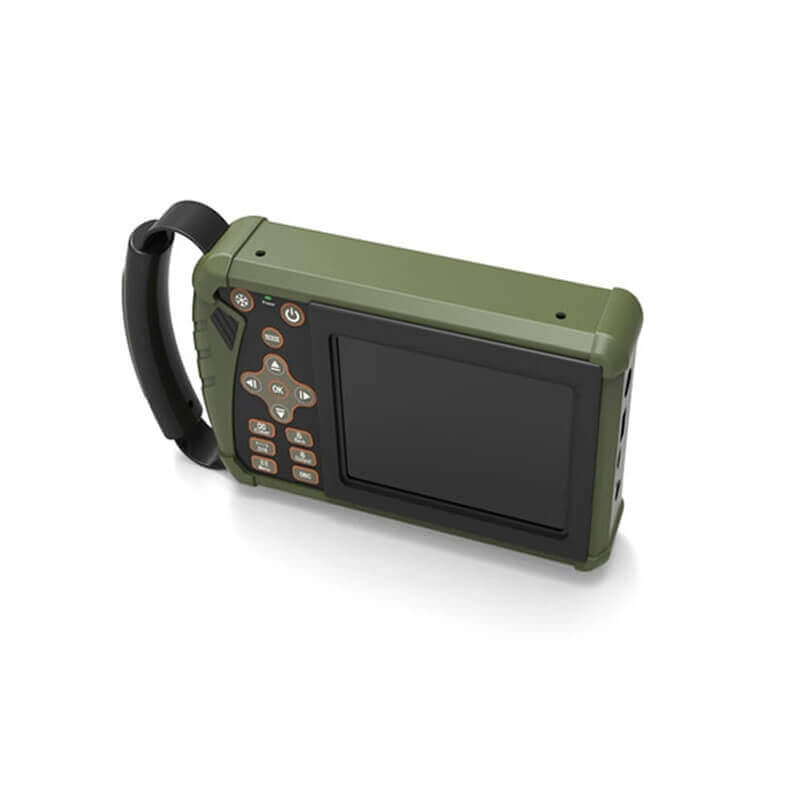

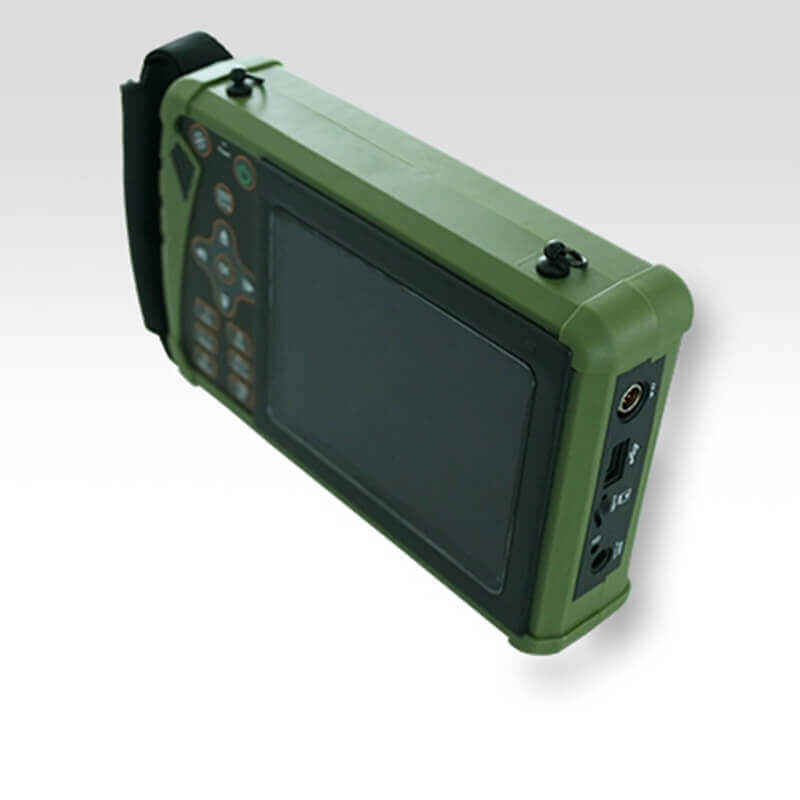

Handheld Mobile Pet Ultrasound Machine for Cat and Puppy PM-V0S

As one of the most professional animal diagnostic ultrasound manufacturers in China, our small animal diagnostic ultrasound machine PM-V6T can be used for canine, feline, equine, bovine, ovine, and other more various veterinary clinical abdomen, chest, heart, tendon, small organs, the eye, genital examination.

Overview

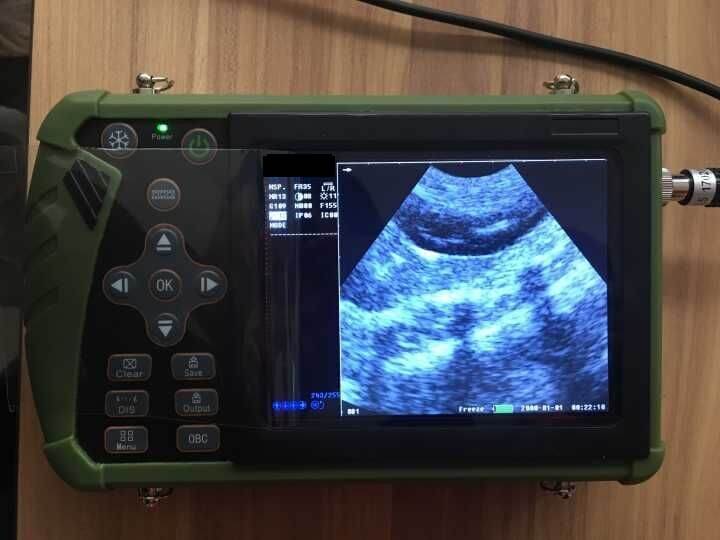

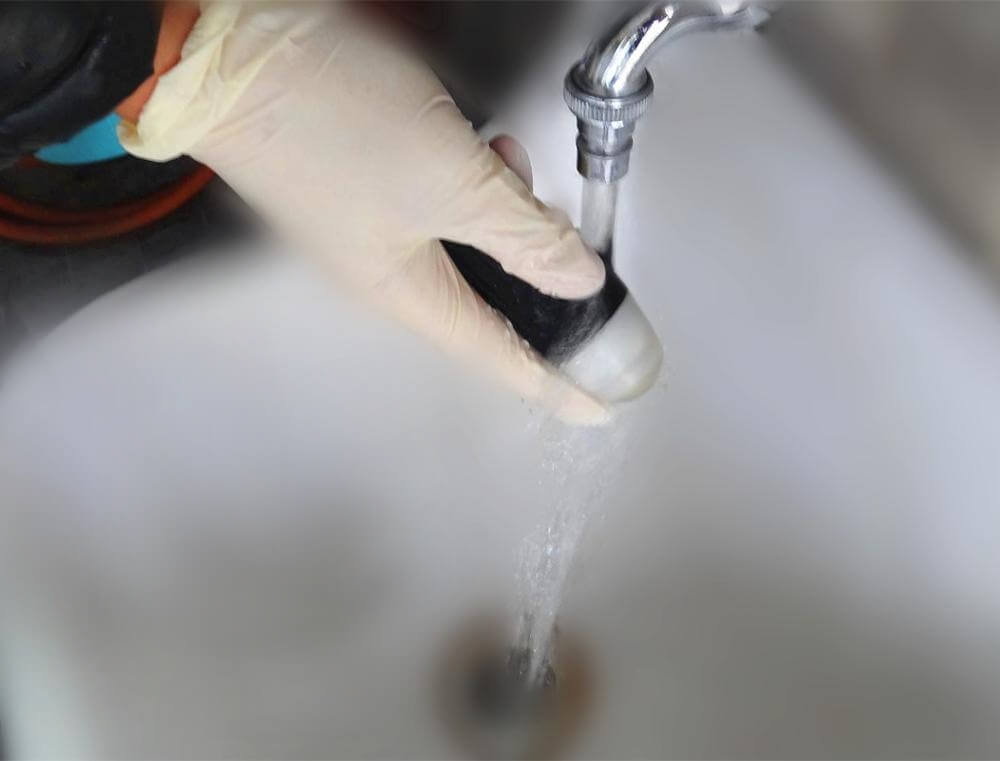

The application of microcomputer control and digital sweep surface converter (DSC), broadband low noise pressure control amplifier, digital logarithmic compression, digital dynamic filtering, frame correlation processing, edge enhancement and other technologies make the whole machine image more clear and high resolution. Portable pocket ultrasound, built-in battery, waterproof probe, easy to use. The operation is simple and accurate.

Get a Quick Quote

Product Details Specifications Application Contact Us

More details information about Small Animal Portable Veterinary Mobile Ultrasound for Dogs PM-V1S

Features:

Image storage: host with TF card and USB interface, pictures stored directly in TF card, unlimited storage.
Image processing: up / down, left / right, black / WHITE FLIP, real-time freeze.
Storage images can be sent out of the TF memory card by frame or continuously.
8 kinds of pseudo color image display
Film replay: 255

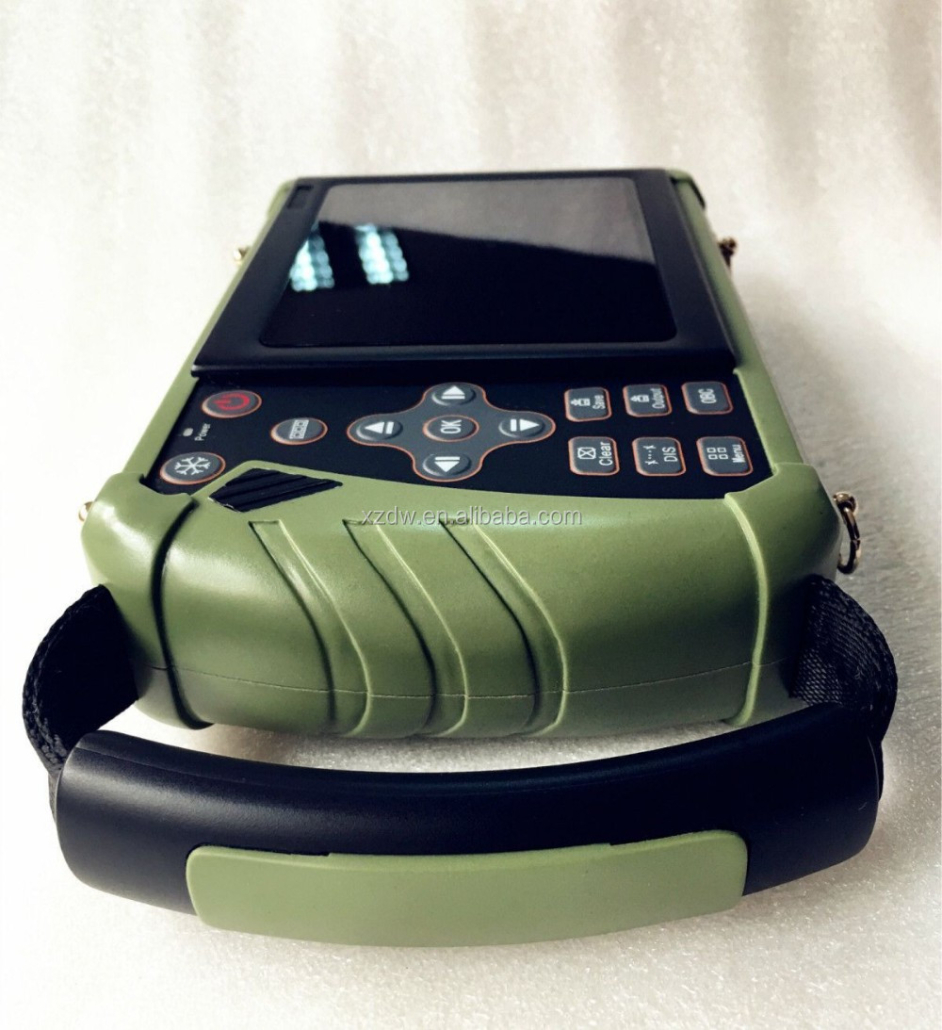

Using touch button, the key is reasonable and easy to operate.
Equipped with large capacity pluggable mobile battery, continuous working for 5 hours.
Storage data can be copied, images are not limited by quantity, and unlimited storage.
The host is equipped with an electronic version of operation manual to facilitate on-site operation and use.

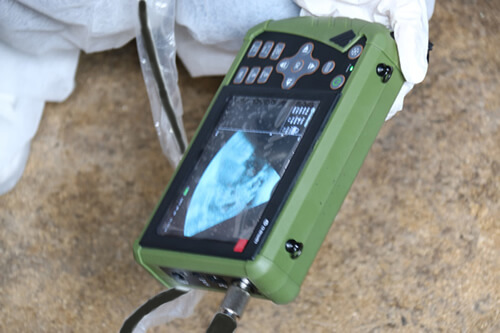

Handheld appearance design, with a variety of patented technology, is small, light, easy to carry and convenient to use.
Power protection function, effectively extend the endurance of equipment.
The machine starts the winter model with one button. The winter mode probe can be used directly without waiting for preheating.
15 level image pre-processing, the image is more delicate
Software control switch machine, effectively protect motherboard, lithium battery, extend machine life.

Application:

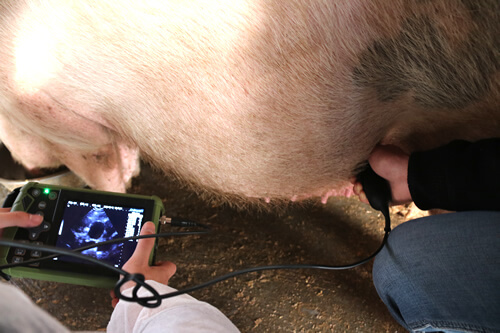

Detection of pregnancy, estimation of litter size, disease diagnosis, fetal viability identification

Suitable object:

For sheep, pigs, dogs and other animal diagnosis of pregnancy (integration of 6 common animal gestational weeks measurement package).

Scope of application:

Large scale pig farms, artificial insemination stations, feed / veterinary drug distributors and enterprises, scientific research teaching units

Technical parameters:

1 Scanning method: mechanical fan scavenging
2 Probe frequency: 3.5MHZ, support 2.5MHZ, 3.0MHZ, 3.5MHZ, 5.0MHZ four frequency conversion.

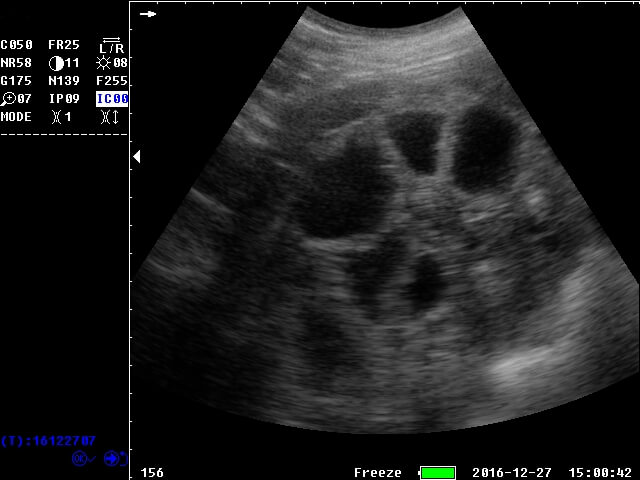

3 Display mode: B, B+B
4 Display depth: 46~208, adjustable
5 Gain adjustment: far field, near field and total gain adjustable
6 Frame frequency: 30 frames per second
7 Image gray scale: 256
8 Image multiplying: 15 kinds of magnification
9 Screen size: 5.6inch LCD screen

Measurements:

Common data measurement functions such as distance, perimeter, area, and gestational age.

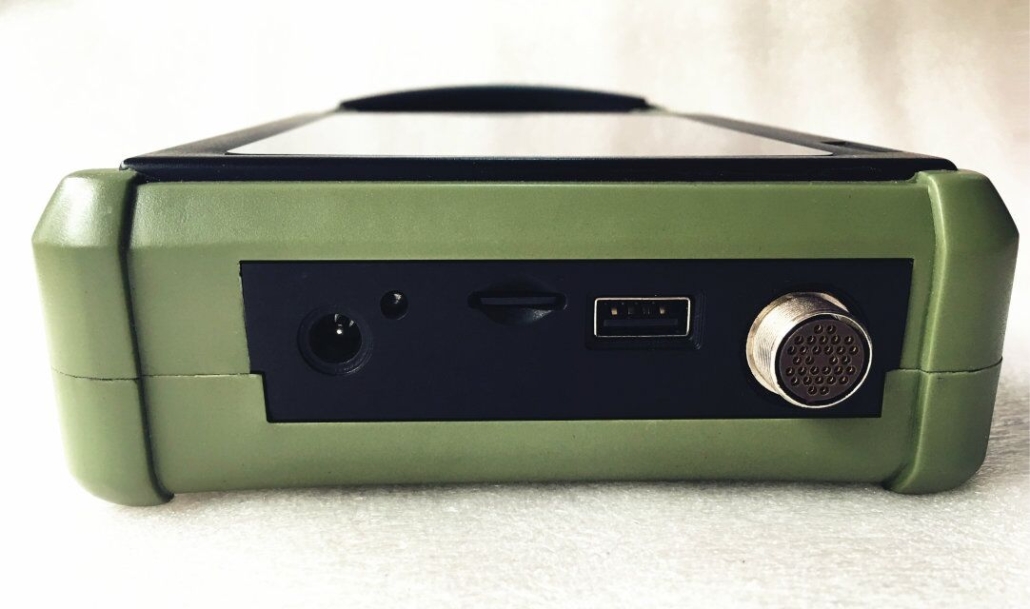

Mini USB interface and TF card interface
Host power consumption:

Non charging working condition 13W/ charging work 25W

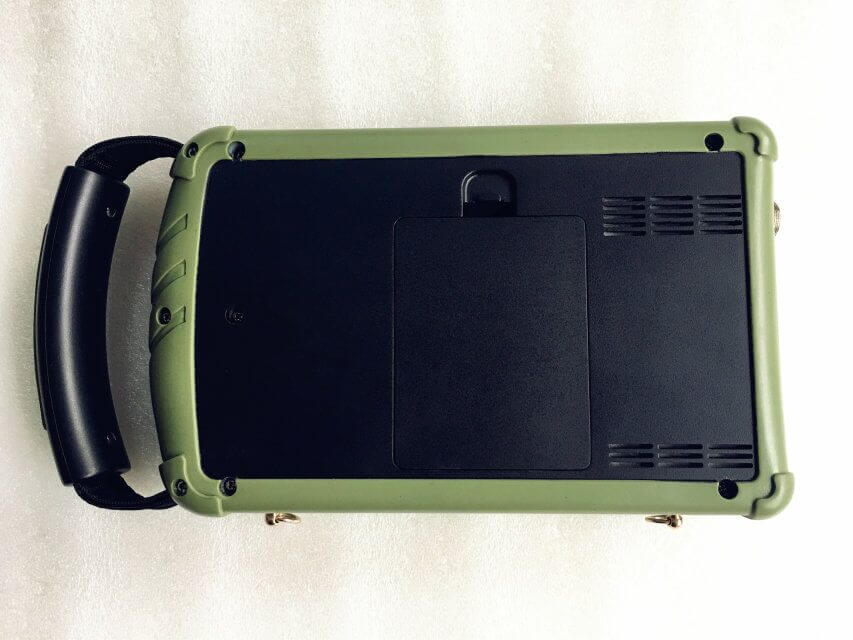

Host size: 240X120X45 (mm)
Host weight: 900g
Standard configuration:

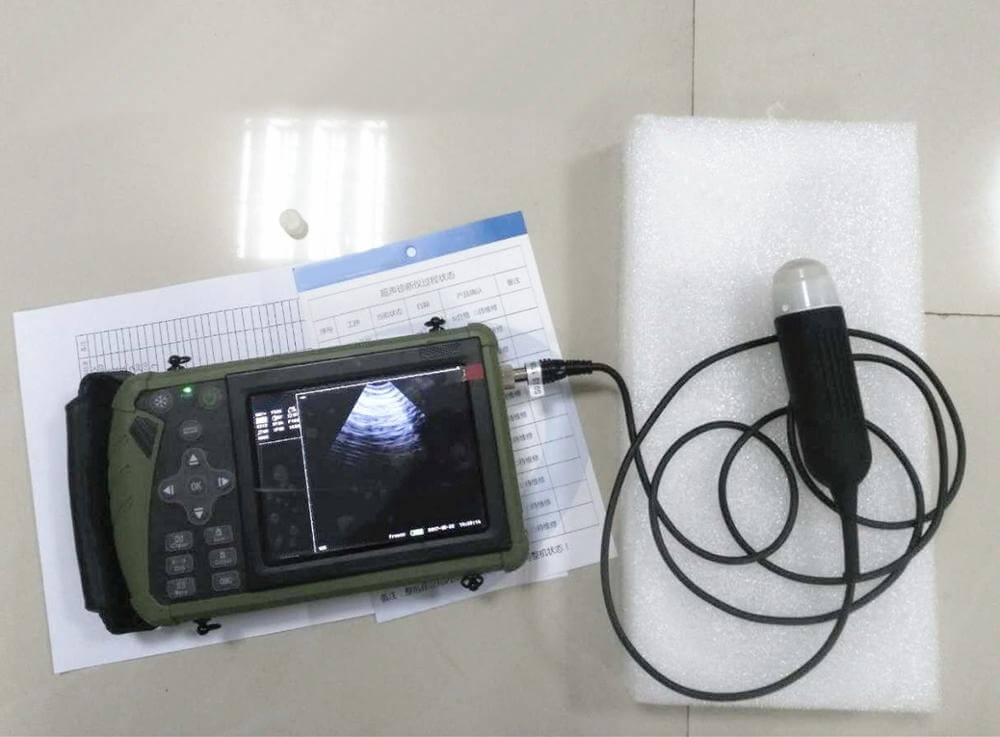

Main engine (including a lithium ion battery), 3.5MHz waterproof mechanical fan scanning probe, instruction manual, power adapter.

Optional configuration:

Probe – 3.5.0MHz waterproof mechanical fan scanning probe, lithium ion battery, vehicle adapter, external charger.

Probe adapted

5.0MHz waterproof mechanical fan scanning probe

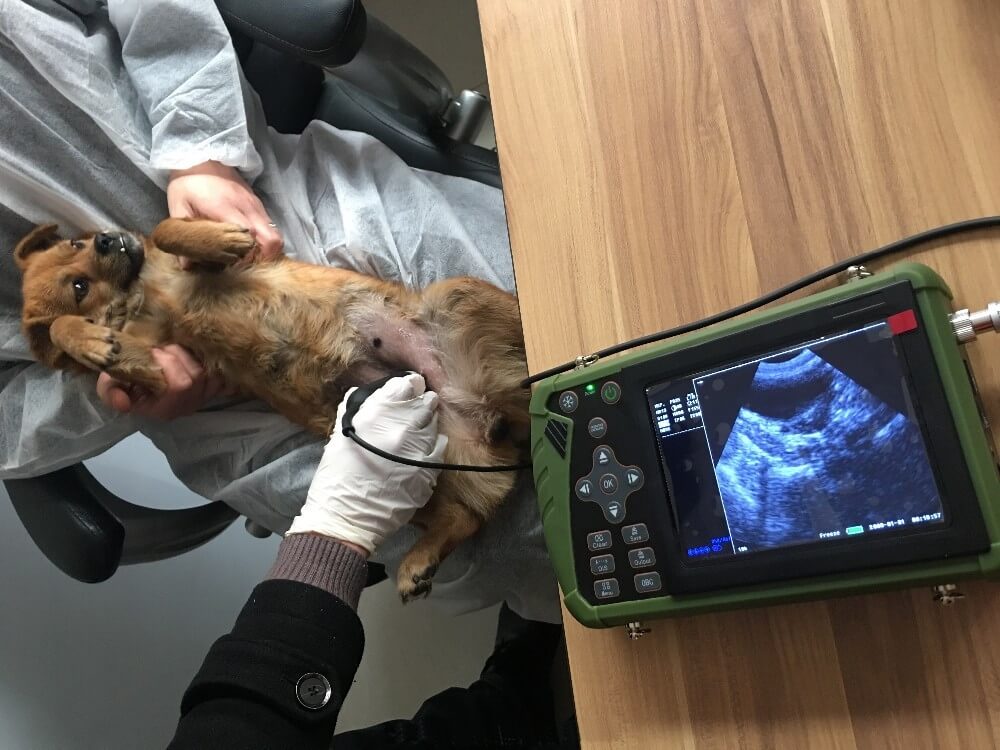

Application: Canine, feline, equine, bovine, ovine, and other more various veterinary clinical abdomen, chest, heart, tendon, small organs, the eye, genital examination.
