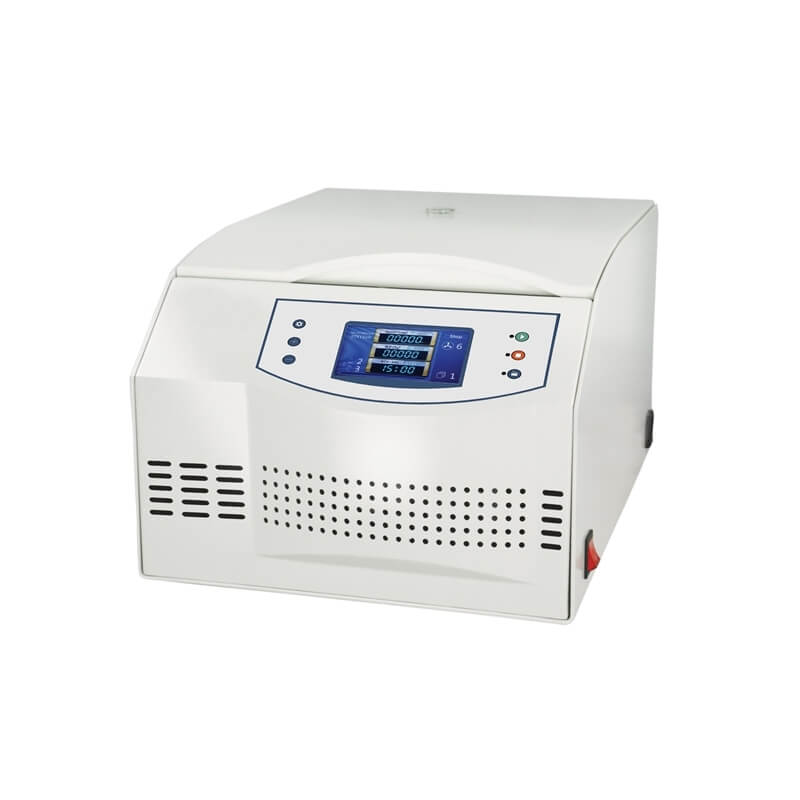

Benchtop High Speed Large Capacity Refrigerated Centrifuge PM6A

16214999141 - Benchtop High Speed Large Capacity Refrigerated Centrifuge PM6A

Microprocessor control with AC Brushless Motor
5 Inches Colorful LCD Display the parameters of speed, timer, RCF, Temperature, rotors information, Program (Memory)information, Acceleration& Deceleration information, and Error code information.
Steel centrifuge body and stainless steel chamber are autoclavable and resistant detergents and disinfection liquids.
Gas hinge for lid drop protection.
Safety Electrical lid interlock, the door could not open when the rotor is running and the machine won’t run when the lid opens and error code appears.

Product Details Rotor Details Contact Us

Features:

Emergency lid lock release when power failure
Heat release holes design reduce the temperature inside the centrifugal chamber on running.
Window on lid for speed calibration and noise measurement.
Continuous operation, working continuously according to the set time.
10 kinds of Program(Memory) and 10 kinds of Acceleration & Deceleration for choice. For more programs please specially mentioned when placing the order.
Automatic troubleshooting with an indication of error code and alarm on the screen.
Wide choicesof rotors are autoclavable.
With CE and ISO9001:2008, ISO13485 certificate

Benchtop High Speed Large Capacity Refrigerated Centrifuge PM6A Specification:

Speed range(rpm)	0-6000rpm adjustable
Max Capacity(ml)	4*500ml
RCF range (xg)	0-5080xg adjustable
Noise(dBA)	≦58dB(A)
Time range	1-99minutes adjustable
Speed accuracy	±20r/min
Dimension(mm)	490640400mm
Net weight (without rotor)	60KGS
Power supply	AC220-240V,50/60HZ,10A,0.75KW

Rotor List Details
Rotor Number	Image	Max Speed	Max Volume	Max RCF	Adapter
NO.1 Swing rotor		4000rpm	16×10/15ml	3000xg	16×0.2ml/0.5ml 16×1.5/2.2ml 16x5ml 16x2ml(75mm,vacuum blood collection tube) 16x5ml(100mm,vacuum blood collection tube)
NO.2 Swing rotor		4000rpm	24×10/15ml	3000xg	24×0.2ml/0.5ml 24×1.5/2.2m 24x5ml 24x2ml(75mm,vacuum blood collection tube) 24x5ml(100mm,vacuum blood collection tube)
NO.3 Swing rotor		4000rpm	32×10/15ml	3000xg	32×0.2ml/0.5ml 32×1.5/2.2m 32x5ml 32x2ml(75mm,vacuum blood collection tube) 32x5ml(100mm,vacuum blood collection tube)
NO.4 Swing rotor		4000rpm	4x50ml	4605xg	4x3x0.2ml/0.5ml 4x2x1.5/2.2ml 4x5ml,4x10ml,4x15ml 4x20ml,4x30ml 4x3x2ml(75mm,vacuum blood collection tube) 4x3x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.5 Swing rotor		4000rpm	4x100ml	4650xg	4x6x0.2ml/0.5ml 4x4x1.5/2.2ml 4x2x5ml,4x10ml,4x15ml 4x20ml,4x30ml,4x50ml 4x3x2ml(75mm,vacuum blood collection tube) 4x3x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.6 Swing rotor		4000rpm	8x50ml	3040xg	8x3x0.2ml/0.5ml 8x2x1.5/2.2ml 8x5ml,8x10ml,8x15ml 8x20ml,8x30ml 8x2ml(75mm,vacuum blood collection tube) 8x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.7 Swing rotor		4000r/min	48x2m/48x5ml	2625xg/ 2950xg	48×0.2ml 48×0.5ml 48×1.5/2.2ml
NO.8 Swing rotor		4000rpm	4x500ml	3520xg	4x26x0.2ml/0.5ml 4x17x1.5/2.2ml 4x10x5ml,4x9x10ml,4x9x15ml 4x7x20ml,4x5x30ml 4x3x50ml,4x100ml.4x250ml.4x300ml 4x9x2ml(75mm,vacuum blood collection tube) 4x9x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.9 Swing rotor		4000rpm	96x2ml(Vacuum blood collection tube)	2975x	96×0.2ml 96×0.5ml 96×1.5/2.2ml
NO.10 Swing rotor		4000rpm	96x5ml(Vacuum blood collection tube)	3405xg	96×0.2ml 96×0.5ml 96×1.5/2.2ml
NO.11 Swing rotor		4000rpm	80x2ml (Vacuum blood collection tube)	3260xg	80×0.2ml 80×0.5ml 80×1.5/2.2ml
NO.12 Swing rotor		4000rpm	80x5ml (Vacuum blood collection tube)	3620xg	80×0.2ml 80×0.5ml 80×1.5/2.2ml
NO.13 Swing rotor		4000rpm	24x50ml	3405xg	24x3x0.2ml/0.5ml 24x2x1.5/2.2ml 24x5ml,24x10ml,24x15ml 24x20ml,24x30ml 4x9x2ml(75mm,vacuum blood collection tube) 4x9x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.14 Swing rotor		4000rpm	48x15ml	3000xg	48×0.2ml 48×0.5ml 48×1.5/2.2ml
NO.15 Swing rotor		4000rpm	4x250ml(conical	3640xg	4x14x0.2ml/0.5ml 4x10x1.5/2.2ml 4x5x5ml,4x10ml,4x15ml 4x20ml,4x30ml,4×50,4×100 4x7x2ml(75mm,vacuum blood collection tube) 4x3x5ml(100mm,vacuum blood collection tube) All can be custom made
