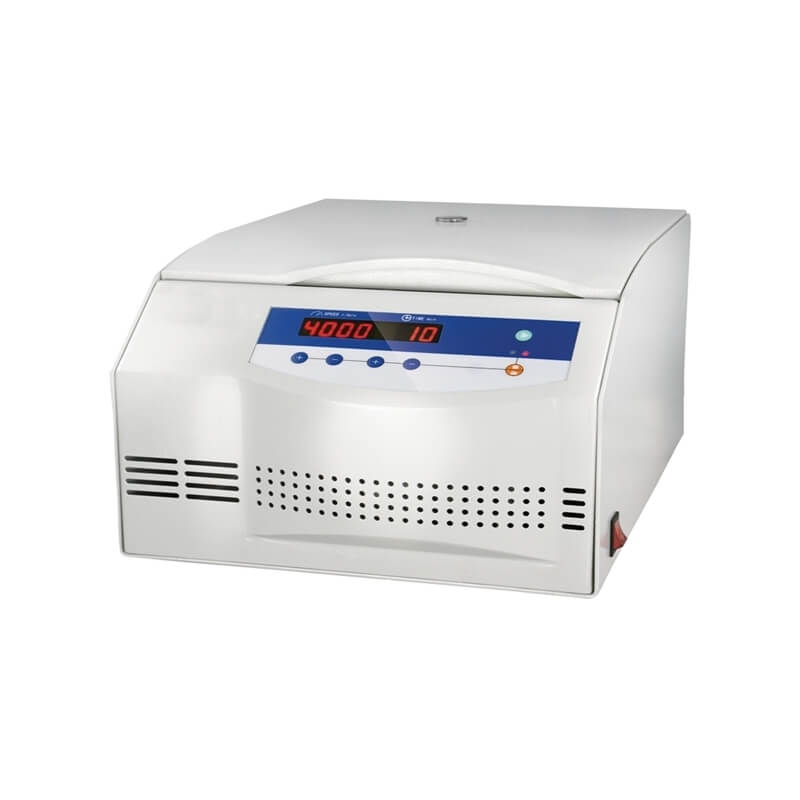

Low Speed Benchtop Large Capacity Centrifuge Machine PM4

16214999141 - Low Speed Benchtop Large Capacity Centrifuge Machine PM4

Microprocessor control with AC Brushless Motor
LCD Display the parameters of speed,timer, RCF, Program (Memory)information,Acceleration& Deceleration information and Error code information.
Steel centrifuge body and 304# stainless steel chamber are autoclavable and resistant detergents and disinfection liquids.
Gas hinge for lid drop protection.
Safety Electrical lid interlock, the door could not open when the rotor is running and the machine won’t run when the lid opens and an error code appears.

Product Details Rotor Details Contact Us

Features:

Emergency lid lock release when power
Window on lid for speed calibration and noise measurement.
Continuous operation, working continuously according to the set time.
10 kinds of Program(Memory) and 10 kinds of Acceleration & Deceleration for choice. For more programs please specially mentioned when placing the order.
Automatic troubleshooting with an indication of error code and alarm on the screen.
Wide choicesof rotors are autoclavable.
With CE and ISO9001:2008, ISO13485 certificate

Low Speed Benchtop Large Capacity Centrifuge Machine PM4 Specification:

Speed range(rpm)	0-4000rpm adjustable
Max Capacity(ml)	24*15ml
RCF range (xg)	0-2870xg adjustable
Noise(dBA)	≦58dB(A)
Time range	1-99minutes adjustable
Speed accuracy	±20r/min
Dimension(mm)	510400280mm
Net weight(without rotor)	28KGS
Power supply	AC220-240V,50/60HZ,2A,0.2KW

Rotor List Details
Rotor Number	Image	Max Speed	Max Volume	Max RCF	Adapter
NO.1 Fixed rotor		4000rpm	12x10ml	2100xg	12×0.2ml/0.5ml 12×1.5/2.2ml 12x5ml 12x2ml(75mm,vacuum blood collection tube) 12x5ml(100mm,vacuum blood collection tube)
NO.2 Fixed rotor		4000rpm	12x15ml	2500xg	12×0.2ml/0.5ml 12×1.5/2.2ml 12x5ml 12x2ml(75mm,vacuum blood collection tube) 12x5ml(100mm,vacuum blood collection tube)
NO.3 Fixed rotor		4000rpm	12x20ml	2510 xg	12×0.2ml/0.5ml 12×1.5/2.2ml 12x5ml 12x2ml(75mm,vacuum blood collection tube) 12x5ml(100mm,vacuum blood collection tube)
NO.4 Fixed rotor		4000rpm	18x10ml	2240 xg	18×0.2ml/0.5ml 18×1.5/2.2ml 18x5ml 18x2ml(75mm,vacuum blood collection tube) 18x5ml(100mm,vacuum blood collection tube)
NO.5 Fixed rotor		4000rpm	24x10ml	2600 xg	24×0.2ml/0.5ml 24×1.5/2.2ml 24x5ml 24x2ml(75mm,vacuum blood collection tube) 24x5ml(100mm,vacuum blood collection tube)
NO.6 Fixed rotor		4000rpm	24x15ml	2700 xg	24×0.2ml/0.5ml 24×1.5/2.2ml 24x5ml 24x2ml(75mm,vacuum blood collection tube) 24x5ml(100mm,vacuum blood collection tube)
NO.7 Fixed rotor		4000rpm	6x50ml	2200 xg	6x3x0.2ml/0.5ml 6x2x1.5/2.2ml 6x5ml/10ml/15ml/20ml/30ml 6x2ml(75mm,vacuum blood collection tube) 6x5ml(100mm,vacuum blood collection tube)
NO.8 Fixed rotor		4000rpm	4x100ml	2100 xg	4x6x0.2ml/0.5ml 4x4x1.5/2.2ml 4x2x5ml 4x10ml/15ml/20ml/30ml 4x2ml(75mm,vacuum blood collection tube) 4x5ml(100mm,vacuum blood collection tube)
NO.9 Swing rotor		4000rpm	12x10ml	2600 xg	12×0.2ml/0.5ml 12×1.5/2.2ml 12x5ml 12x2ml(75mm,vacuum blood collection tube) 12x5ml(100mm,vacuum blood collection tube)
NO.10 Swing rotor		4000rpm	8x15ml	2690 xg	8×0.2ml/0.5ml 8×1.5/2.2ml 8x5ml 8x2ml(75mm,vacuum blood collection tube) 8x5ml(100mm,vacuum blood collection tube)
NO.11 Swing rotor		4000rpm	4x50ml	2420 xg	4x3x0.2ml/0.5ml 4x2x1.5/2.2ml 4x5x10ml/15ml/20ml/30ml 4x2ml(75mm,vacuum blood collection tube) 4x5ml(100mm,vacuum blood collection tube)
NO.12 Swing rotor		4000rpm	16x10ml	2690 xg	16×0.2ml/0.5ml 16×1.5/2.2ml 16x5ml 16x2ml(75mm,vacuum blood collection tube) 16x5ml(100mm,vacuum blood collection tube)
NO.13 Swing rotor		4000rpm	4x100ml	2690 xg	4x6x0.2ml/0.5ml 4x4x1.5/2.2ml 4x2x5ml 4x10ml/15ml/20ml/30ml 4x3x2ml(75mm,vacuum blood collection tube) 4x3x5ml(100mm,vacuum blood collection tube)
