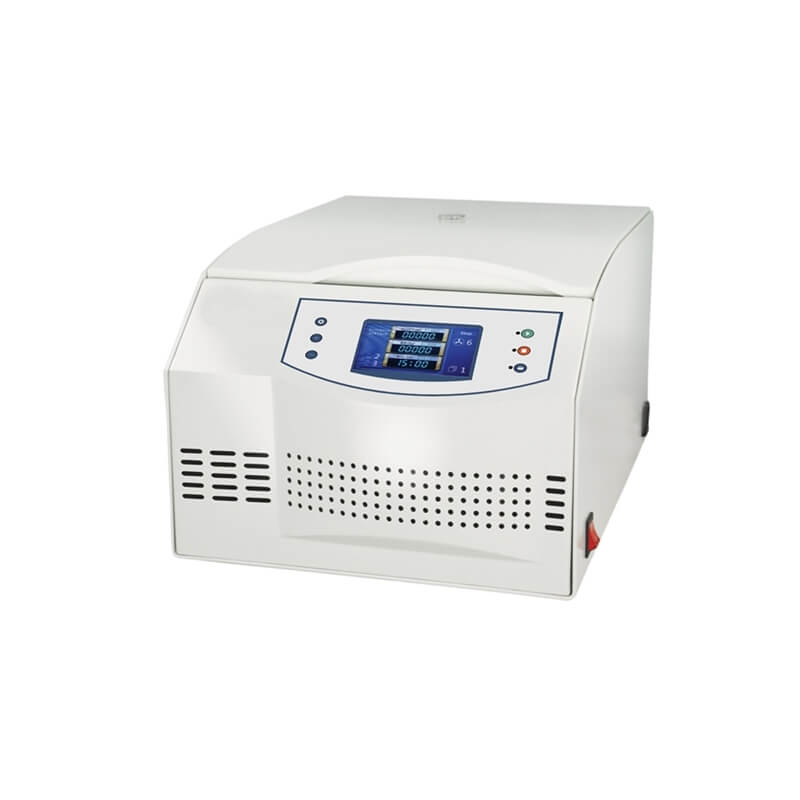

Large Capacity Benchtop High Speed Centrifuge Machine PM20A

16214999141 - Large Capacity Benchtop High Speed Centrifuge Machine PM20A

Microprocessor control with AC Brushless Motor
5 Inches Colorful LCD Display the parameters of speed, timer, RCF, Temperature, rotors information, Program (Memory)information, Acceleration& Deceleration information, and Error code information.
Steel centrifuge body and 304# stainless steel chamber are autoclavable and resistant detergents and disinfection liquids.
Gas hinge for lid drop protection.
Safety Electrical lid interlock, the door could not open when the rotor is running and the machine won’t run when the lid opens and error code appears.

Product Details Rotor Details Contact Us

Features:

Emergency lid lock release when power failure
Heat release holes design reduce the temperature inside the centrifugal chamber on running.
Window on lid for speed calibration and noise measurement.
Continuous operation, working continuously according to the set time.
10 kinds of Program(Memory) and 10 kinds of Acceleration & Deceleration for choice. For more programs please specially mentioned when placing the order.
Automatic troubleshooting with an indication of error code and alarm on the screen.
Wide choicesof rotors are autoclavable.
With CE and ISO9001:2008, ISO13485 certificate

Large Capacity Benchtop High Speed Centrifuge Machine PM20A Specification:

Speed range(rpm)	0-20000rpm adjustable
Max Capacity(ml)	32*15ml
RCF range (xg)	0-27800xg adjustable
Noise(dBA)	≦58dB(A)
Time range	1-99minutes adjustable
Speed accuracy	±20r/min
Dimension(mm)	420545360mm
Net weight(without rotor)	53KGS
Power supply	AC220-240V,50/60HZ,10A,0.75KW

Rotor List Details
Rotor Number	Image	Max Speed	Max Volume	Max RCF	Adapter
NO.1 Fixed rotor		20000rpm	12×1.5ml	27800xg	12×0.2ml
NO.2 Fixed rotor		16000rpm	24×1.5ml/2.2ml	23800xg	24×0.2ml
NO.3 Fixed rotor		16000rpm	48×0.5ml	21000xg	48×0.2ml
NO.4 Fixed rotor		13500rpm	30×1.5/2.2ml	15310xg	48×0.2ml
NO.5 Fixed rotor		11000r/min	10x15ml(conical bottom)	13960xg	10×0.2ml 10×0.5ml 10×1.5/2.2ml
NO.6 Fixed rotor		11000r/min	12x15ml(round bottom)	13960xg	12×0.2ml 12×0.5ml 12×1.5/2.2ml
NO.7 Fixed rotor		11000rpm	6x50ml	13280xg	6×0.2ml 6×0.5ml 6x5ml 6x10ml 6x15ml 6x20ml 6x30m 6×1.5/2.2ml
NO.8 Fixed rotor		10000rpm	4x100ml	13280xg	4×0.2ml 4×0.5ml 4x5ml 4x10ml 4x15ml 4x20ml 4x30m 4×1.5/2.2ml
NO.9 Fixed rotor		4000rpm	16×10/15ml	3000xg	16×0.2ml/0.5ml 16×1.5/2.2ml 16x5ml 16x2ml(75mm,vacuum blood collection tube) 16x5ml(100mm,vacuum blood collection tube)
NO.10 Fixed rotor		4000rpm	24×10/15ml	3000xg	24×0.2ml/0.5ml 24×1.5/2.2m 24x5ml 24x2ml(75mm,vacuum blood collection tube) 24x5ml(100mm,vacuum blood collection tube)
NO.11 Fixed rotor		4000rpm	32×10/15ml	3000xg	32×0.2ml/0.5ml 32×1.5/2.2m 32x5ml 32x2ml(75mm,vacuum blood collection tube) 32x5ml(100mm,vacuum blood collection tube)
NO.12 Fixed rotor		4000rpm	4x50ml	3000xg	4x3x0.2ml/0.5ml 4x2x1.5/2.2ml 4x5ml,4x10ml,4x15ml 4x20ml,4x30ml 4x3x2ml(75mm,vacuum blood collection tube) 4x3x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.13 Fixed rotor		4000rpm	4x100ml	3000xg	4x6x0.2ml/0.5ml 4x4x1.5/2.2ml 4x2x5ml,4x10ml,4x15ml 4x20ml,4x30ml,4x50ml 4x3x2ml(75mm,vacuum blood collection tube) 4x3x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.14 Fixed rotor		4000rpm		3000xg	8x3x0.2ml/0.5ml 8x2x1.5/2.2ml 8x5ml,8x10ml,8x15ml 8x20ml,8x30ml 8x2ml(75mm,vacuum blood collection tube) 8x5ml(100mm,vacuum blood collection tube) All can be custom made
NO.15 Swing rotor		4000r/min	2x2x96 Micro plate	2990xg	2x49x0.2ml 2x49x0.5ml 2x30x1.5/2.2ml
