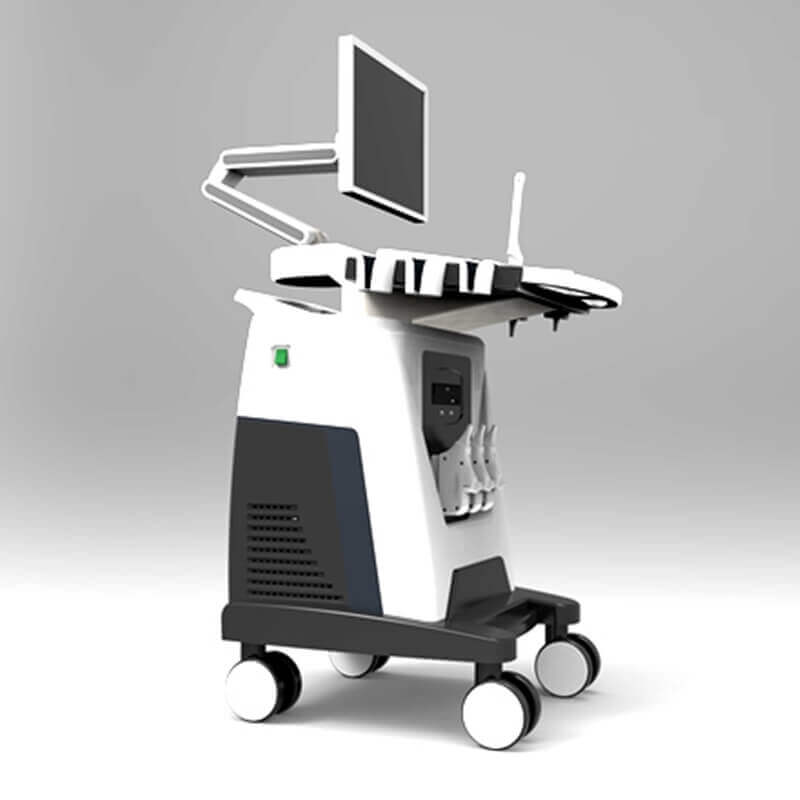

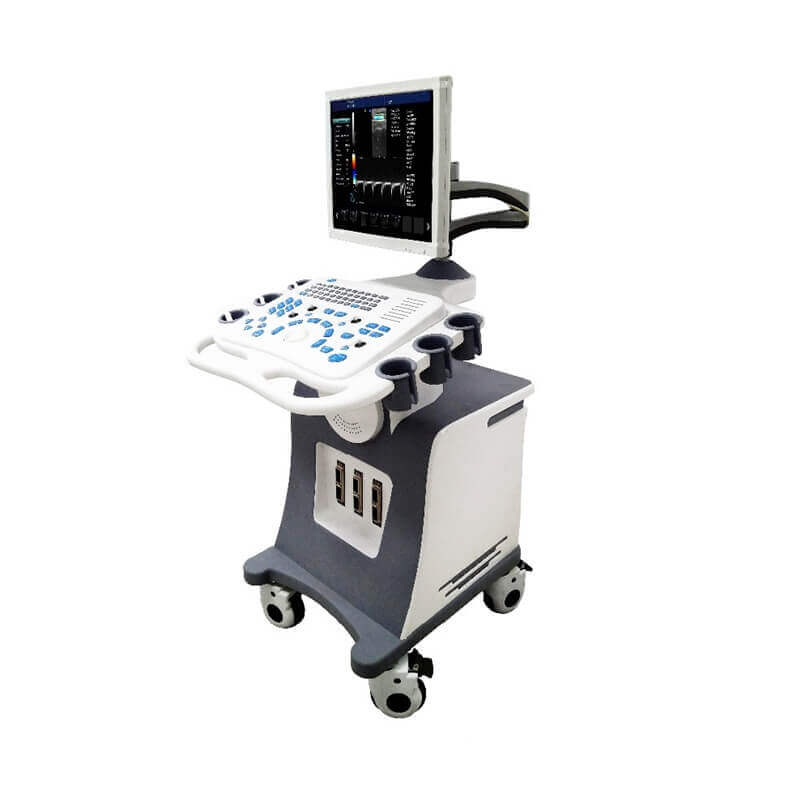

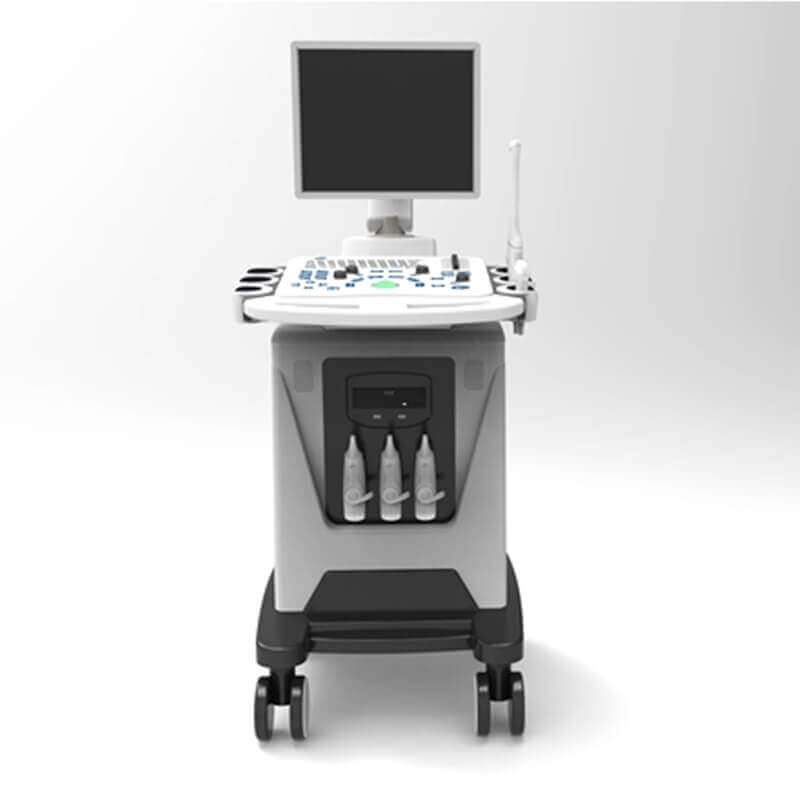

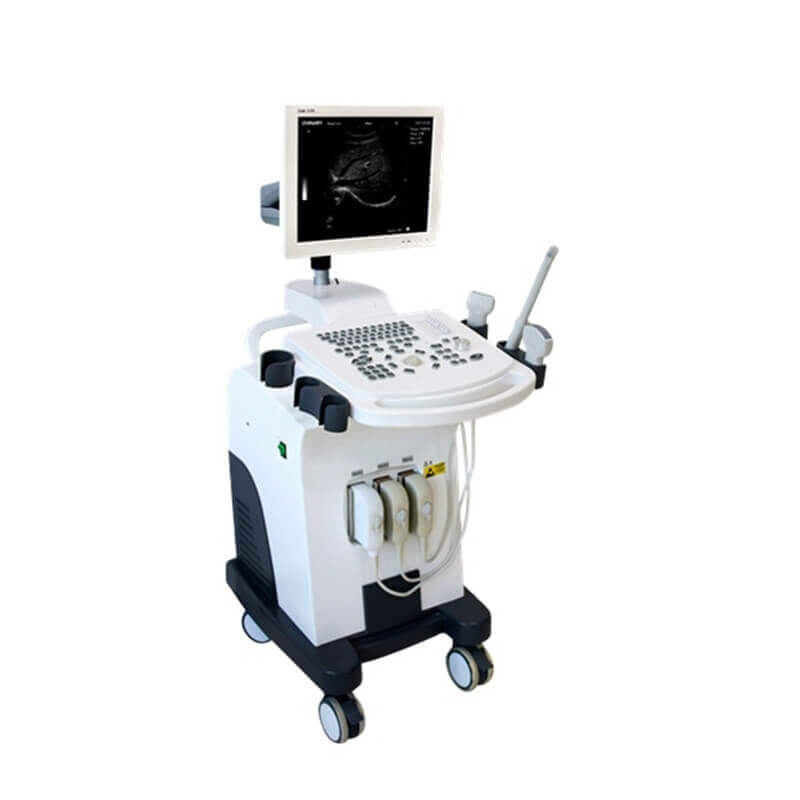

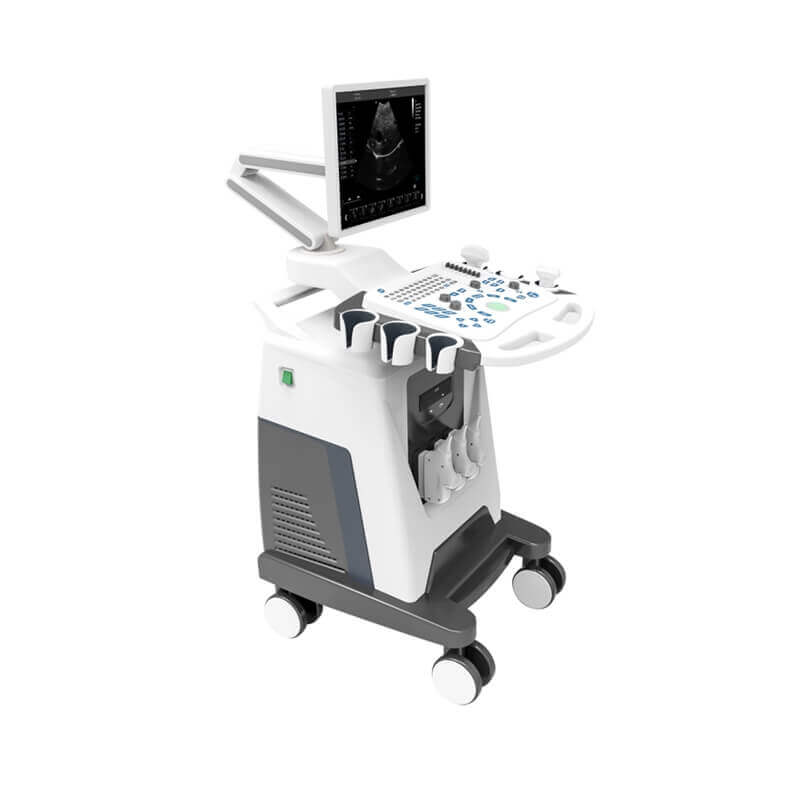

Color Doppler Livestock Large Animal Ultrasound Machine PM-V3T

As one of the most professional animal diagnostic ultrasound manufacturers in China, our small animal diagnostic ultrasound machine PM-V6T can be used for canine, feline, equine, bovine, ovine, and other more various veterinary clinical abdomen, chest, heart, tendon, small organs, the eye, genital examination.

Overview

With high precision digital beamforming and Doppler ultrasonic imaging technology,
Pro incorporated the latest image processing technologies such as THI,
speckle reduction, multi-beam parallel processing, and efficient full-digital image management system it easy to acquire a better image.
Special measurement software packages, flexible configuration, and ergonomic design greatly increase operators clinical
diagnosis accuracy and analysis efficiency.
Based on Windows 7 operating platform, solid-state hard drive data storage, fast switch machine.

Get a Quick Quote

Product Details Specifications Probe Optional More Details Application Contact Us

More details information about color doppler livestock large animal ultrasound machine PM-V3T

Product Description
the display:17’ LED medical monitor
scanning: convex array / linear array / micro convex
the probe interface: ≥ 3
the probe automatically identifying
support: abdomen, superficial, cavity, convex, volume, rectum, etc.
the user interface: Chinese/English/ Spanish/ Portuguese/ French/ Russian/ Arabic/ Vietnamese/ Portuguese/ Indonesian/ German/ Persian/ Thai
display mode:B mode (B, B + B, 4B, B + M, M), C mode, PW mode, (4D) real-time three-dimensional mode, B / C, B / C / PW, B / PW, B + M,
M mode: 4 files scanning speed adjustable
electronic focus: four electronic focus
Body markers: ≥ 57 kinds
image processing: from top to bottom mirror, left and right mirror, angle changes, blood flow.
image processing: from top to bottom mirror, left and right mirror, angle changes, blood flow.

measurement: distance, circumference, area, volume, heart rate, stenosis rate, area stenosis rate, angle, distance, rhythm, speed, abdomen, heart, routine, skeletal muscle, early obstetrics, middle and late obstetrics (Uterine attachment), small organs, urology, peripheral blood vessels, gestational age and expected date of birth, fetal weight and so on. Obstetric measurement formula. Dimensional distance, perimeter, volume measurement.
character display: date, clock, name, gender, age, doctor, hospital, note (full-screen character editing)
movie cine loop: ≥ 1200 frames, can be continuous playback or view by frame and frame (preset 1280, the current 600, after the hard disk updated can be achieved)
storage: in the storage display interface can be sent directly to the mobile device, image storage path (can be stored directly to the U disk and other external storage devices), probe parameter storage, cine loop storage, measurement results storage, report storage.
gray level: 256 level
with a puncture guide function, puncture line position can be adjusted
with gravel positioning, dynamic target tracking function
dynamic range: 0-270dB

intelligent TGC control: 8 paragraphs.
pre-processing: variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, tissue harmonics imaging.
post-processing: dynamic range 0-270DB, black and white afterglow 0-7, smoothing 0-7. gray curve 1-16, frame correlation, tissue harmonics, sound power, wall filter, cumulative number, baseline adjustment, sampling Frame adjustment, spectrum sampling volume, spectral sampling volume angle, PRF (pulse repetition frequency) and so on.
blind area: ≤ 4mm
the maximum display depth: 320mm;
geometric accuracy: horizontal ≤ 5%, vertical ≤ 5%
resolution: lateral ≤ 2mm, axial ≤ 1mm
external interface: video, USB interface, DICOM3.0
display magnification: 16 kinds of display mode; lesion diagnosis more accurate.
frame rate: 5-1016fps (can be adjusted according to customer needs)
scanning range: 5% – 100%
gain adjustment: the total gain of 0 ~ 127dB, PW gain 0-15, CFM gain: 0-15
image optimization: 6 adjustable
smoothing: 8 adjustable
edge enhancement: 8 adjustable
pulse repetition rate (PRF): 16 adjustable
gray level curve: 16 adjustable
sound power: 15 adjustable

Introduction to the probe

3.5MHzR65 multi-frequency convex probe
6.5MHzR10 multi-frequency convex probe
7.5MHzL46 multi-frequency linear probe
3.0MHzL19 multi-frequency phased-array probe
4.0MHzR40 multi-frequency convex volume probe

4 480x400 - Color Doppler Livestock Large Animal Ultrasound Machine PM-V3T

3.5MHzR65 multi-frequency convex probe

The probes have a frequency range between 2.0MHz-5.5MHz. In the B-Mode, they have a scanning angle of 60°. In the M-Mode, they can activate a particular array element as fixed-frequency probes. They can be used in the combination of B-Mode and M-Mode.

Scope of application: examination and diagnosis of abdominal tissues, such as liver, gallbladder, spleen, pancreas, kidneys, gastro-intestinal, uterus, urinary bladder, prostate, etc.; assessment of growth and maturity of the fetus in obstetric diagnosis.

6.5MHzR10 multi-frequency convex probe

The probes have a frequency range between 5.0MHz-9.0MHz. In the B-Mode, they have a scanning angle of 140-158°. In the M-Mode, they can activate a particular array element as fixed-frequency probes. They can be used in the combination of B-Mode and M-Mode.

Scope of application: vagina, uterus, rectum, rectum wall, prostate, etc.

Warning: Oil- and bacteria-free rubber sleeves must be added when using the probes. The probes should not be activated until going into the patient’s body.

7.5MHzL46 multi-frequency linear probe

The probes have a frequency range between 6.0MHz-12.0MHz. In the B-Mode, they have a scanning width of 38-45. In the M-Mode, they can activate a particular array element as fixed-frequency probes. They can be used in the combination of B-Mode and M-Mode.

Scope of application: newborns, musculoskeletal system, peripheral vessels, small parts (including breasts, thyroid, testis, etc.)

3.0MHzL19 multi-frequency phased-array probe

The probes have a frequency range between 2.0MHz-5.5MHz. In the B-Mode, they have a scanning angle of 90°. In the M-Mode, they can activate a particular array element as fixed-frequency probes. They can be used in the combination of B-Mode and M-Mode.

Scope of application: heart, abdominal tissues, and parts

4.0MHzR40 multi-frequency convex volume probe

The probes have a frequency range between 2.0MHz-5.5MHz. In the B-Mode, they have a scanning angle of 70°. In the M-Mode, they can activate a particular array element as fixed-frequency probes. They can be used in the combination of B-Mode and M-Mode.

Scope of application: real-time 3D scan; examination and diagnosis of the fetus, abdominal tissues, uterus, etc.; assessment of growth and maturity of the fetus in obstetric diagnosis.

The transmission frequency: with 2.0MHz, 3.0MHz, 3.5MHz, 4.0MHz, 5.5MHz, 5.0MHz, 6.5MHz, 9.0MHz, 6.0MHz, 7.5MHz, 12.0MHz frequency conversion;

Probe frequency:

Convex array probe frequency range 2.0,3.0,3.5,4.0,5.5MHz
Endo Cavity probe: 5.0, 6.0, 6.5, 7.5, 9.0 MHz
Linear array probe: 6.0, 6.5, 7.5, 10.0, 12.0 MHz
Micro convex probe R20: 5.0, 6.0, 6.5, 7.5, 9.0 MHz
4D probe: 2.0,3.0,3.5,4.0,5.5Mhz

Transducers

Convex Array Probe

Frequency: Central 3.5 MHz
2.0 MHz
5.5 MHz
Pitch: 0.516 mm
Radius: 60 mm
Number of Elements: 128

Linear Array Probe:

Frequency: Central 7.5 MHz
6.0 MHz
12.0 MHz
Pitch: 0.352 mm
Radius: N/A
Number of Elements: 128

Intra-Cavity Probe:

Frequency: Central 6.5 MHz
5.0 MHz
9.0 MHz
Pitch: 0.216 mm
Radius: 10 mm
Number of Elements: 128

Phased Array Probe:

Frequency: Central 3.0 MHz
2.0 MHz, Max.5.0 MHz
Pitch: 0.300 mm
Radius: N/A
Number of Elements: 128

4D Volume Probe (Optional)

Frequency: Central 4.0 MHz
2.0 MHz, Max. 5.5 MHz
Number of Elements: 128

Application to:

Examination of liver, gallbladder, spleen, kidney, bladder, uterus, pregnancy, superficial, cavity, convex, volume, rectum, etc. of animals and diagnosis of lesions.

Probe Optional：

Convex array probe frequency range 2.0, 3.0, 3.5, 4.0, 5.5 MHz
Endo Cavity probe: 5.0, 6.0, 6.5, 7.5, 9.0 MHz
Linear array probe: 6.0, 6.5, 7.5, 10.0, 12.0 MHz
Micro convex probe R20: 5.0, 6.0, 6.5, 7.5, 9.0 MHz
4D probe: 2.0, 3.0, 3.5, 4.0, 5.5 MHz

MEASUREMENTS SPECIFICATIONS

Analysis Packages

Basic, Obstetrics, Gynecology, Urology, Andrology, Cardiac, Peripheral Vascular, Venous, Small Parts, Orthopedic

Basic Measurement

B-mode basic measurement: Distance, Angle, Perimeter and Area (ellipse or track-based method), Volume, Histogram, Sectional Map
M-mode basic measurement: Heart Rate, Time, Distance, Speed

Obstetrics

All general measurements and calculations

Obstetrical data versions to calculate gestational age:

—Two fixed data revisions: Asia & Europe
—One editable data version: User Custom
—Each version can estimate the gestational age and expected date of confinement based on measured gestational sac (GS), biparietal diameter (BPD), crown-rump length (CRL), femur length (FL), humeral length (HL), abdominal transverse diameter (ATD), vertebral length (LV), occipitofrontal diameter (OFD), abdominal circumference (AC) and head circumference (HC)

Obstetrical Report

Amniotic Fluid Index (AFI)
BPD/OFD, FL/AC, FL/BPD and HC/AC ratio
Estimate Weight Of Fetus
Gestational Age
Expected Date Of Confinement (LMP/BBT)
Fetal Biophysical Score
Fetus Growth Curve

Gynecology

All general measurements and calculations
Uterus, Ovary, Follicle
Gynecology Report

Andrology

All general measurements and calculations
Prostate, Testis
Prostate Specific Antigen (PSA)
Prostate Specific Antigen Density (PSAD)
Andrology report

Small Parts

All general measurements and calculations
Thyroid, Mammary Gland, Nodule
Small Parts Report

Cardiac

All general measurements and calculations
Heart Rate
Blood Flow Rate
Left Ventricle
Aorta
Mitral Valve
Ventricle (left/right)
Area Stenosis (% area Sten)
Vascular Diameter Stenosis (% Diam Sten)
Body Surface Area (BSA)
Cardiac Report

Peripheral Vascular

All general measurements and calculations
Area Stenosis
Vessel Diameter Stenosis
Peripheral Vascular Report

Venous

All general measurements and calculations
Right and left extremity measurements
Venous patient report

Orthopedic

All general measurements and calculations
Right and left hip angle measurement
Hip angle patient report

Application: Canine, feline, equine, bovine, ovine, and other more various veterinary clinical abdomen, chest, heart, tendon, small organs, the eye, genital examination.
