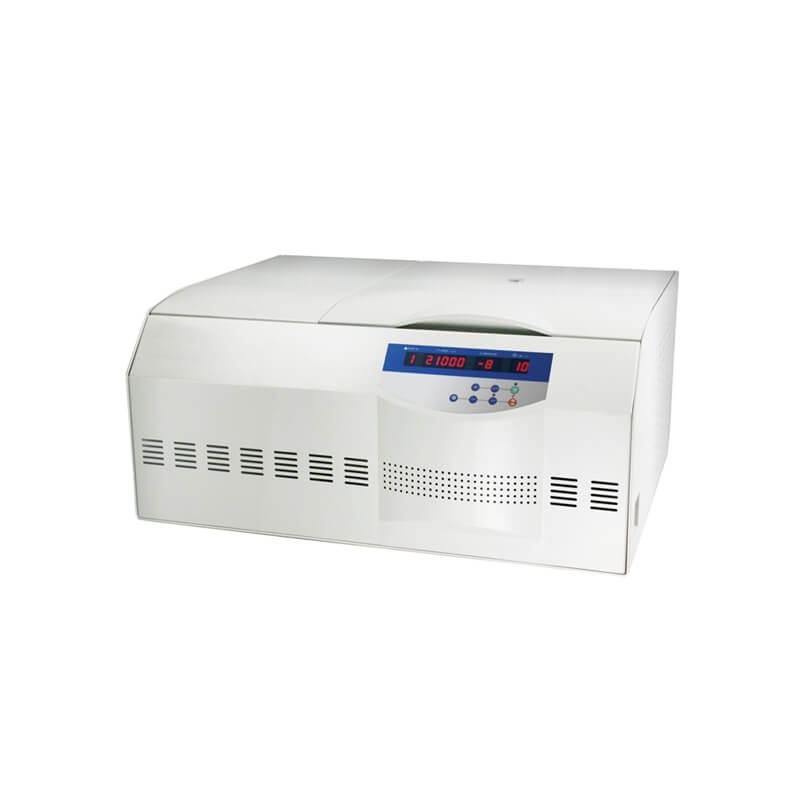

Large Capacity High Speed Benchtop Refrigerated Centrifuge PM21R

16214999141 - Large Capacity High Speed Benchtop Refrigerated Centrifuge for COVID-19 Test PM21R

Microprocessor control with AC Brushless Motor
CFC free cooling system with pre-cooling function.

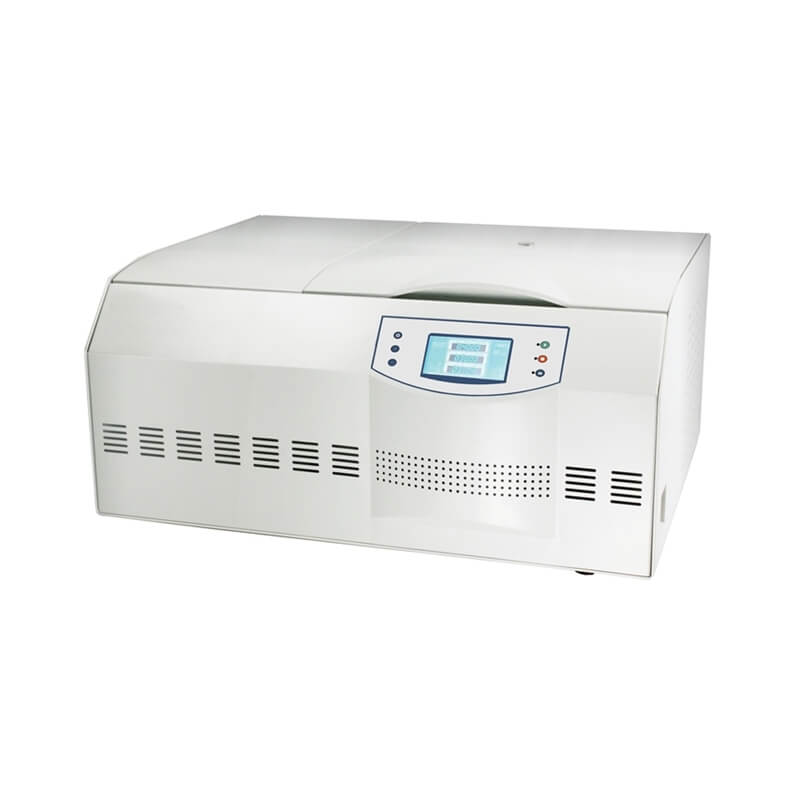

5 Inches Colorful LCD Display the parameters of speed,timer, RCF, Temperature, rotors information, Program (Memory)information, Acceleration& Deceleration information and Error code information.
Steel centrifuge body and 304# stainless steel chamber are autoclavable and resistant detergents and disinfection liquids.
Gas hinge for lid drop protection.
SafetyElectrical lid interlock, door could not open when rotor is running and machine won’t run when lid open and error code appears.

Features:

Emergency lid lock release when power
Window on lid for speed calibration and noise measurement.
Continuous operation, working continuously according to the set time.
10 kinds of Program(Memory) and 10 kinds of Acceleration & Deceleration for choice. For more programs please specially mentioned when placing the order.
Automatic troubleshooting with an indication of error code and alarm on the screen.
Wide choicesof rotors are autoclavable.
With CE and ISO9001:2008, ISO13485 certificate

Large Capacity High-Speed Benchtop Refrigerated Centrifuge PM21R Specification:

Rotor List Details
Rotor Number	Image	Max Speed（rpm）	Max Volume	Max RCF	Adapter
NO.1 Swing rotor		4000rpm	4x800ml	3405xg	4x40x0.2ml/0.5ml, 4x26x1.5/2.2ml,4x16x5ml 4x14x10ml/15ml 4x9x20ml,4x8x30ml 4x5x50ml,6x3x100ml 4x250ml/300ml/500ml 4x24x2ml(75mm,vacuum blood collection tube) 4x24x5ml(100mm,vacuum blood collection tube)
NO.2 Swing rotor		4000rpm	4x250ml	2990xg	4x13x0.2ml/0.5ml 4x10x1.5/2.2ml 4x6x5ml,4x5x10ml,4x5x10ml 4x4x20ml,4x3x30ml,4x50ml 4x100ml 4x9x2ml(75mm,vacuum blood collection tube) Adapter:4x6x5ml(100mm,vacuum blood collection tube)
NO.3 Swing rotor		4000r/min	2x2x48 well	1505xg	All can be custom made
NO.4 Fixed rotor		21000rpm	12×0.5ml	22470xg	12×0.2ml
NO.5 Fixed rotor		21000rpm	12×1.5/2.2ml	29140xg	12×0.2ml
NO.6 Fixed rotor		16000rpm	24×1.5/2.2ml	23800xg	24×0.2ml
NO.7 Fixed rotor		16000rpm	48×0.5ml	21900xg	48×0.2ml
NO.8 Fixed rotor		16000rpm	10x5ml	17780xg	10×0.2ml 10×0.5ml 10×1.5/2.2ml
NO.9 Fixed rotor		15000rpm	12x10ml	19910xg	12×0.2ml 12×0.5ml 12×1.5/2.2ml
NO.10 Fixed rotor		11000r/min	10x15ml(conical bottom)	13960xg	10×0.2ml 10×0.5ml 10×1.5/2.2ml
NO.11 Fixed rotor		11000r/min	12x15ml(round bottom)	13960xg	12×0.2ml 12×0.5ml 12×1.5/2.2ml
NO.12 Fixed rotor		13000rpm	6x50ml	18550xg	6×0.2ml 6×0.5ml 6x5ml 6x10ml 6x15ml 6x20ml 6x30m 6×1.5/2.2ml
NO.13 Fixed rotor		11000rpm	4x100ml	13280xg	4×0.2ml 4×0.5ml 4x5ml 4x10ml 4x15ml 4x20ml 4x30m 4×1.5/2.2ml
NO.14 Fixed rotor		13000rpm	48×1.5/2.2ml	17980xg	48×0.2ml
